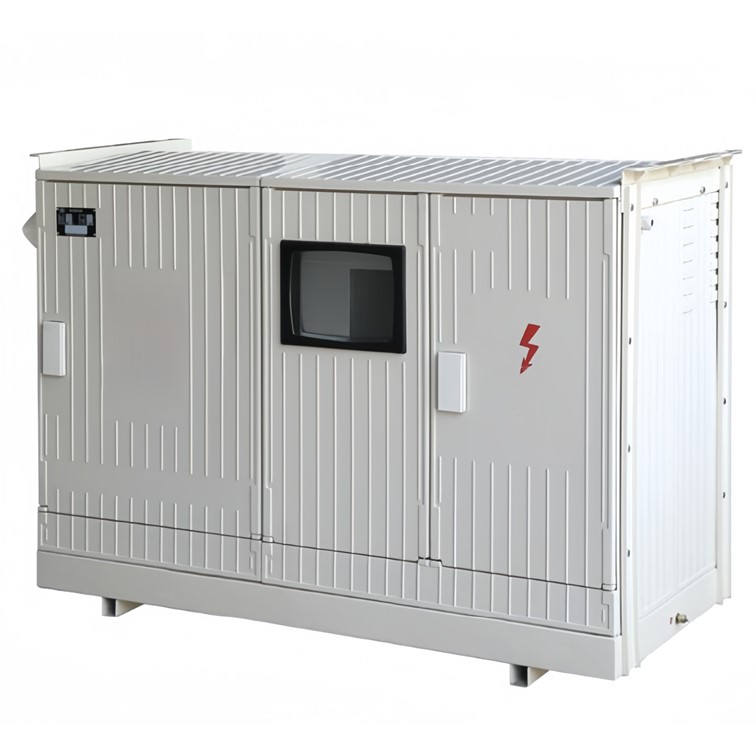

LV Intelligent Integrated Distribution Box
LV Intelligent Integrated Distribution Box is a kind of low-voltage comprehensive distribution box integrating power distribution, metering, protection (overload, short-circuit, leakage, over-voltage, under-voltage and phase failure, etc.) and reactive power compensation.
Application Scenarios
It is widely used in the reconstruction of agricultural network, urban network, industrial and mining enterprises, large-scale power plants, petroleum and chemical enterprises, and power centers of high-rise buildings. Comprehensive distribution box.
Technical Features
Highly Integrated and Comprehensive
Integrates multiple components such as low-voltage switchgear, reactive power compensation devices, and intelligent fusion terminals for station areas
Realizes power distribution, protection, metering, measurement and control, reactive power compensation
Enclosed design and stable connection
Adopts a closed box design, effectively protecting the internal components from external environmental influences
The components are completely assembled together through electrical and mechanical connections
Basic Parameters
| Parameter | Parameter | Parameter | |
| LV Integrated Distribution Box Type | DP-1 | DP-1 | DP-1 |
| Transformer capacity（kVA） | 400 | 200 | 400 |
| Incoming line switch | Fuse type disconnector | Fuse type disconnector | / |
| Outgoing line switch | Modeled case circuit breaker (residual current protector) | Modeled case circuit breaker (residual current protector) | Fuse type disconnector |
| Reactive power compensation（kvar） | Intelligent capacity/（intelligent capacitor + SVG） | intelligent capacitor | / |
| Overall dimensions（W x D x H, mm） | 1350×700×1200 | 800×650×1200 | 1350×700×1200 |
