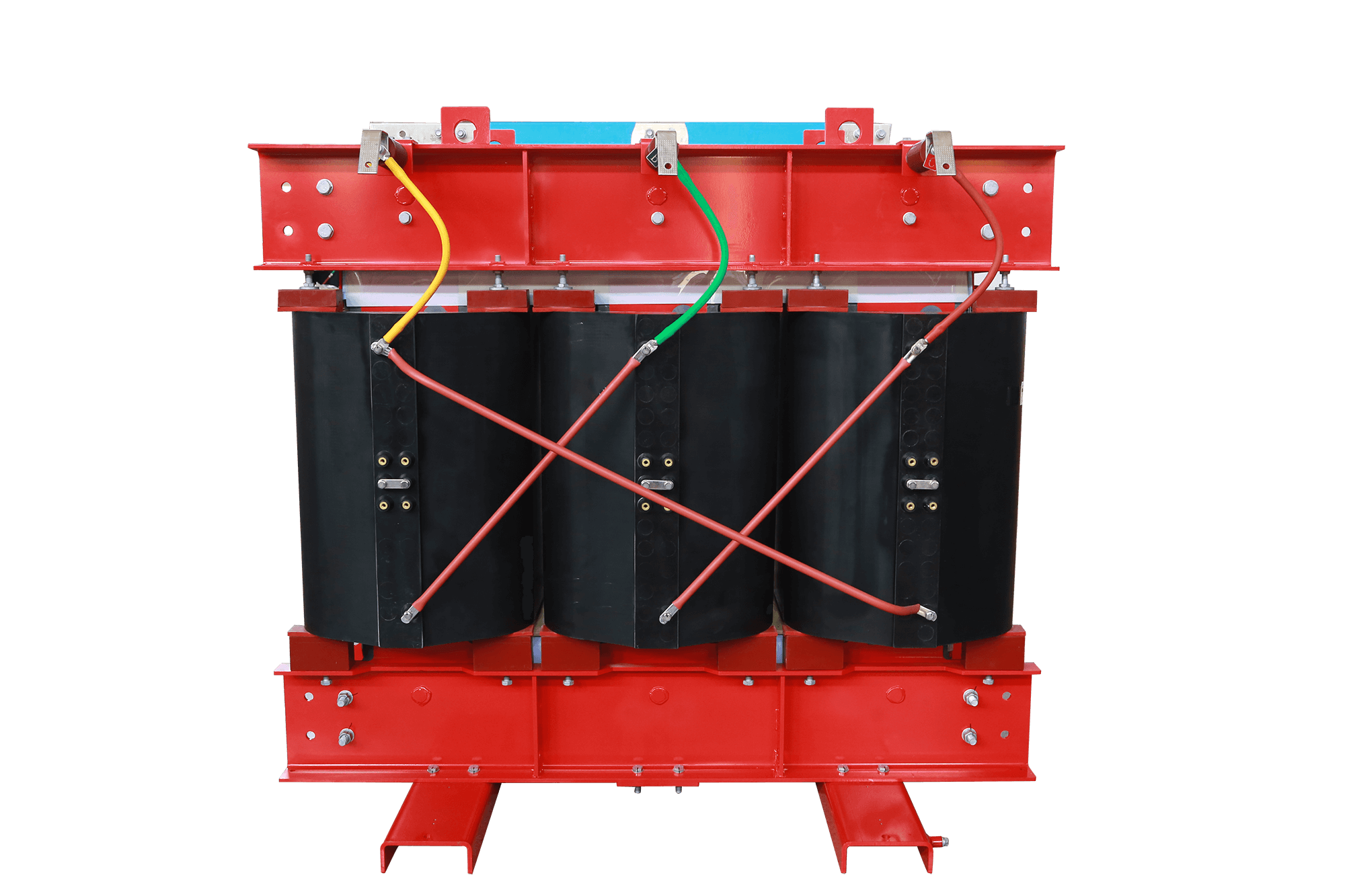

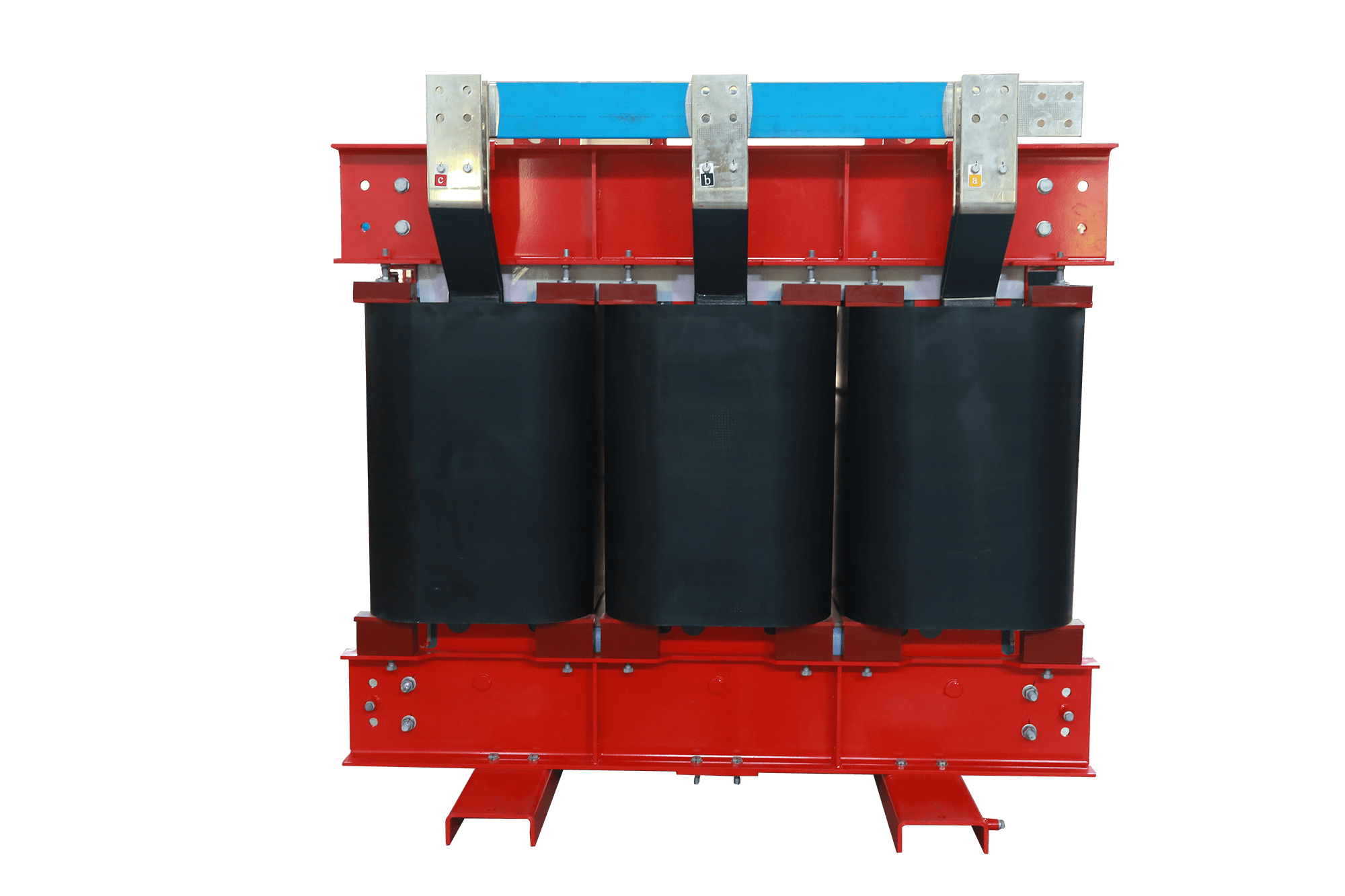

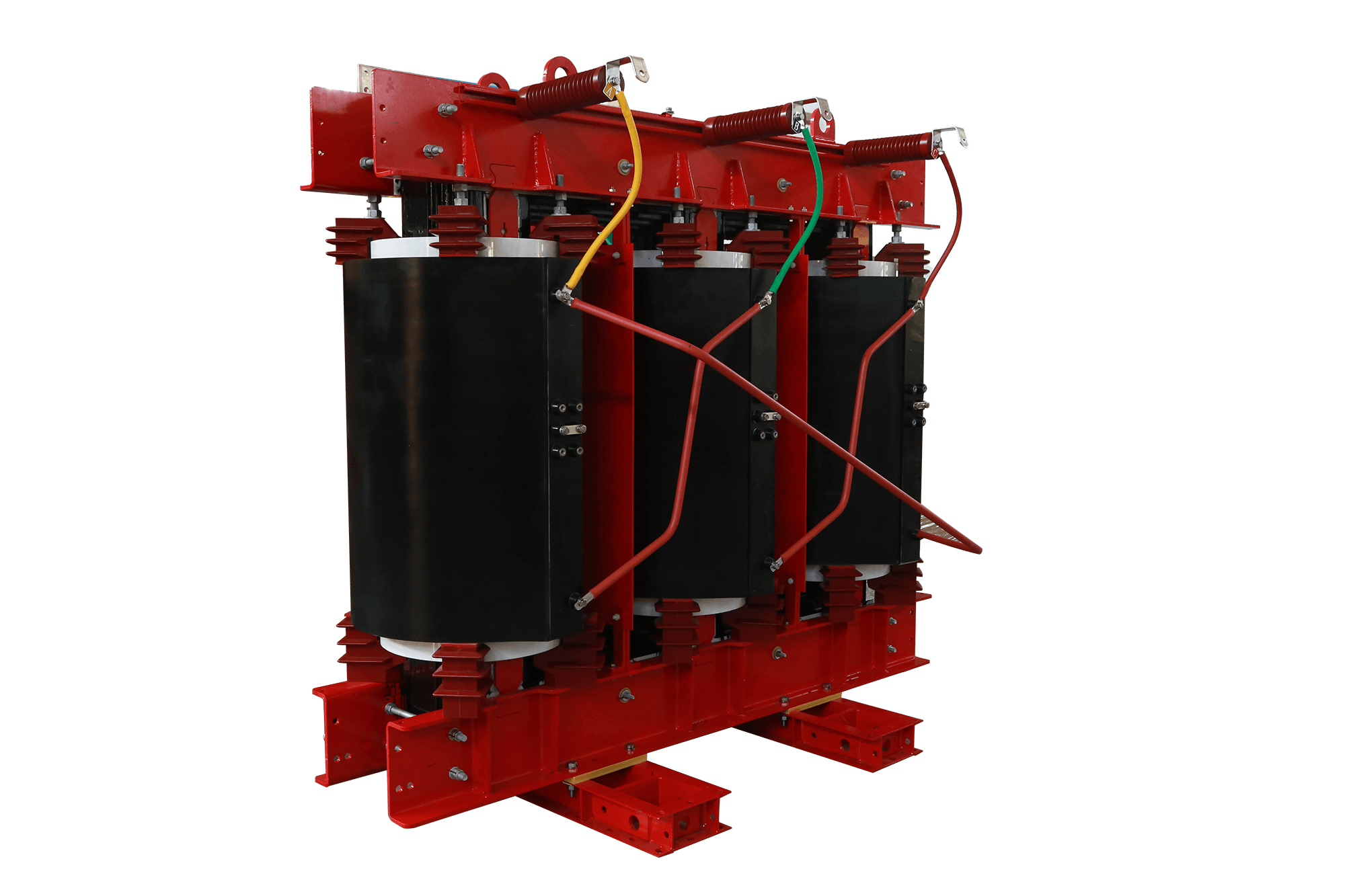

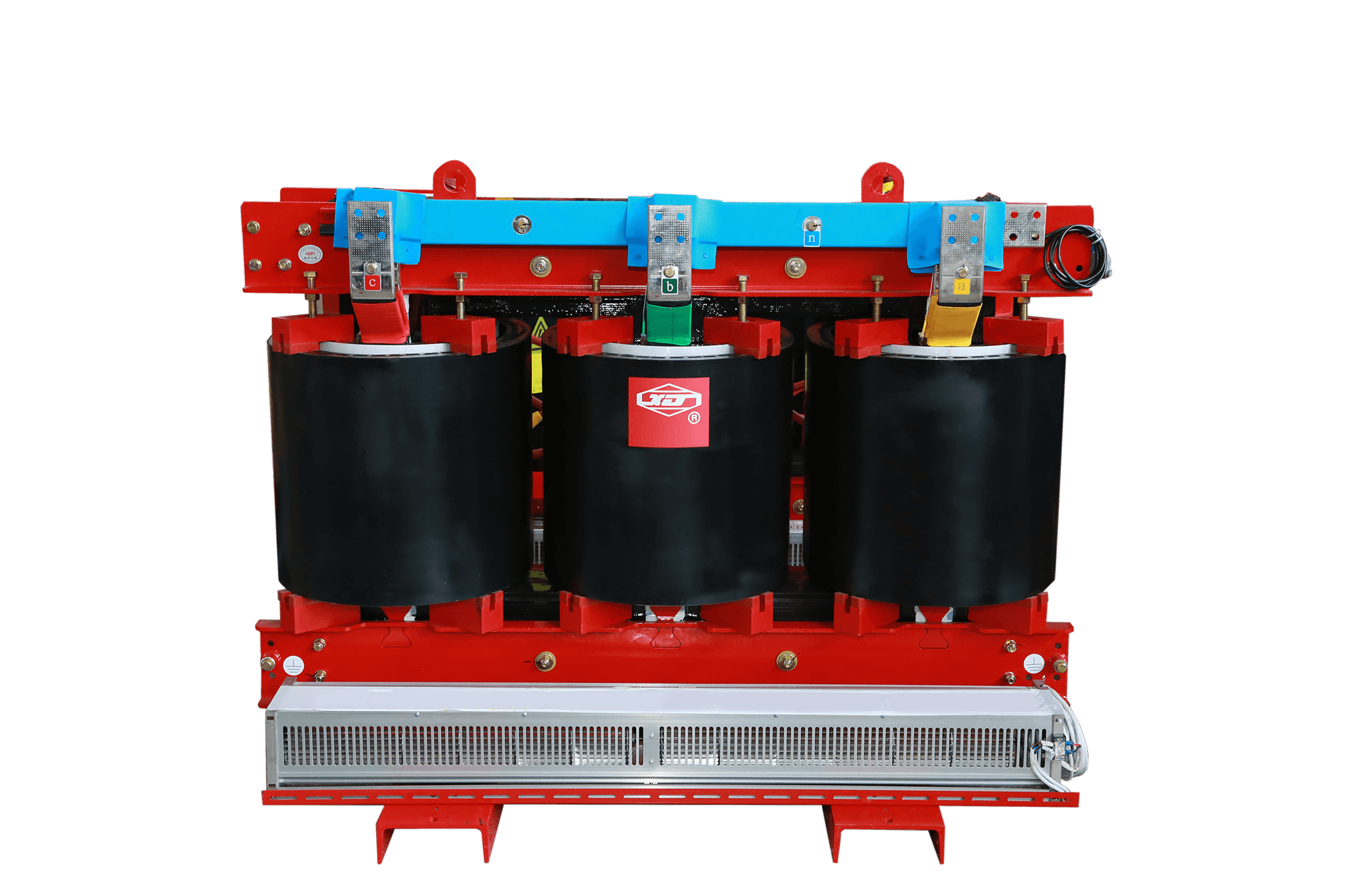

SCB 100~25000kVA 38.5kV and Below Dry-type Power Transformer
The dry-type power transformer can reduce the voltage of 38.5kV to voltages of various levels to meet the demand for electricity consumption, and is an excellent product for reconstruction of urban power grid.
Application Scenarios
Applicable to high-rise buildings, airports, power stations, commercial centers etc.
Technical Features
Green and energy saving
The no-load losses and noise of the transformer are very low
Strong impact resistance
The transformer features high mechanical strength, strong short-circuit impact resistance, moisture resistance, fire resistance and cracking resistance
Long service life
The partial discharge capacity of transformer coil is ≤5pC, and the service life can be up to 30 years
Basic Parameters
Model
SCB
Capacity [kVA]
100~25000
Rated voltage at the primary side [kV]
≤38.5（6.3~38.5）
Rated voltage at the secondary side [kV]
≤10.5（0.4~10.5）
Impedance
4%、6%、8%、10%
Insulation grade
H/F
Testing and Certifications
CMA
CNAS
