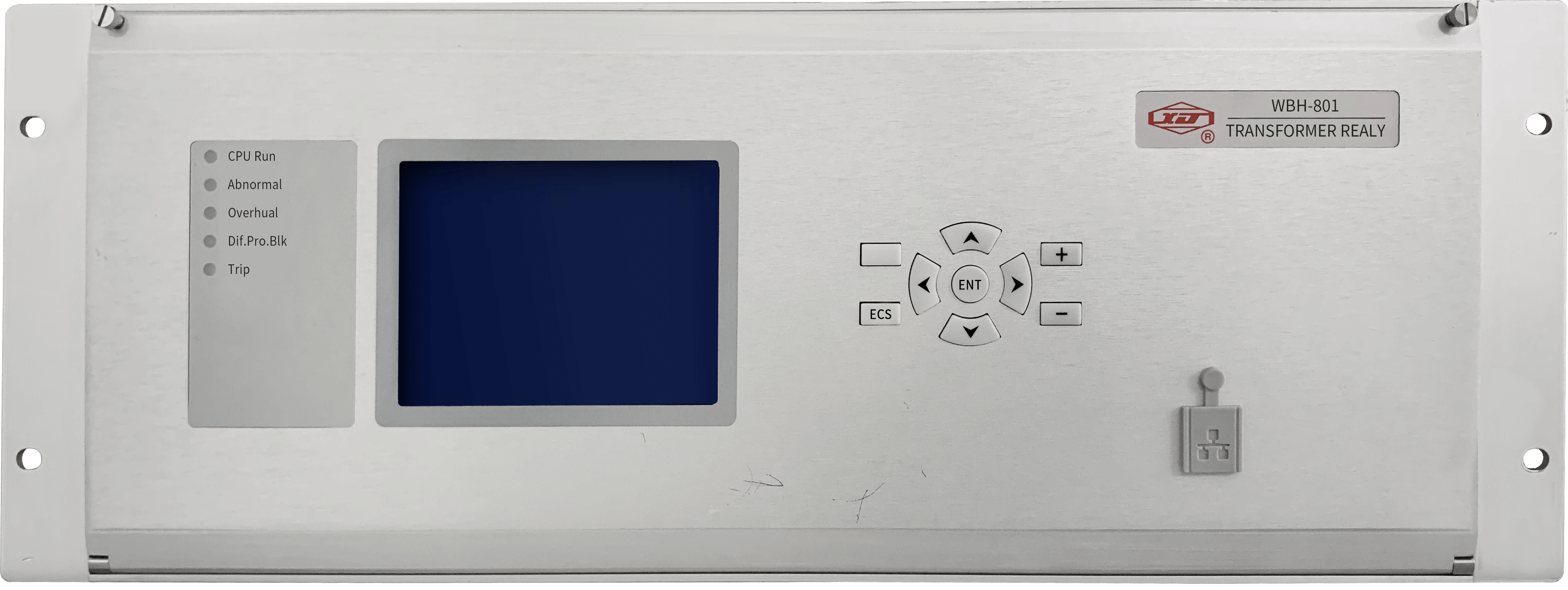

WBH-801 Transformer Protection Device
WBH-801 digital high-voltage transformer protection device, flexible configuration of the protection transformer/reactor, comprehensive protection monitoring, effective prevention of failures, to ensure the stability of the power grid.
Application Scenarios
WBH-801 HV transformer protection device can be used for transformer equipment of various wiring modes with optional reactor protection module. The device integrates main protection and backup protection, and can provide all the electrical protection required for main transformer or shunt reactor.
Technical Features
Flexible wiring
Perfect protection function
Fault recording and event logging functions
Support protection logic, open in open out, panel light user programmable
Comprehensive self-test for AD loop, CPU plug-in, relay coil, etc
Basic Parameters
Device voltage
DC 85~300V
System frequency
50/60HZ
Rated AC Voltage
100~120V
Rated AC current
1A/5A
Dimension
483mm*177mm*281mm
Testing and Certifications
CE
